Floor Scales

Defender® 5000 Washdown Low Profile Floor Platforms

Stainless Steel Low-Profile Floor Platform for Drive-Through Applications

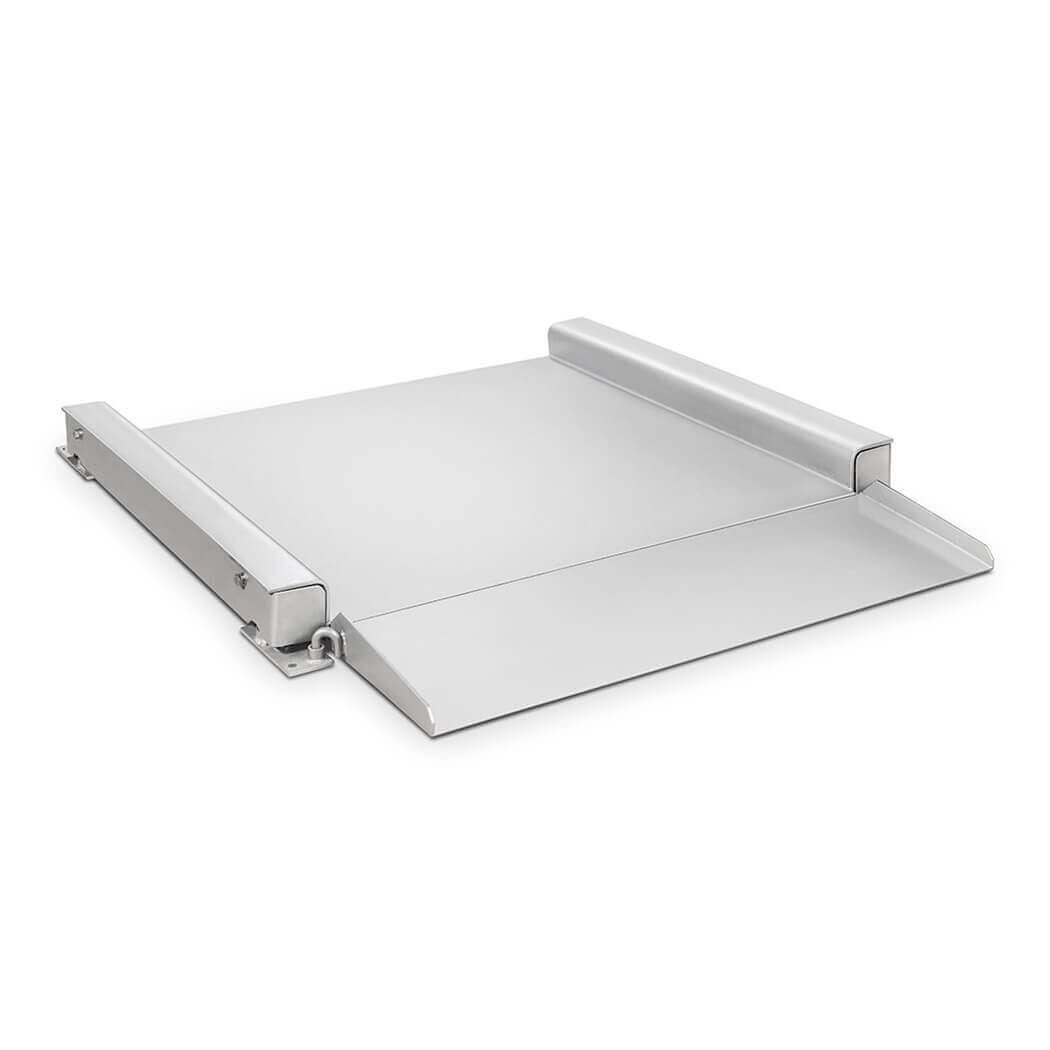

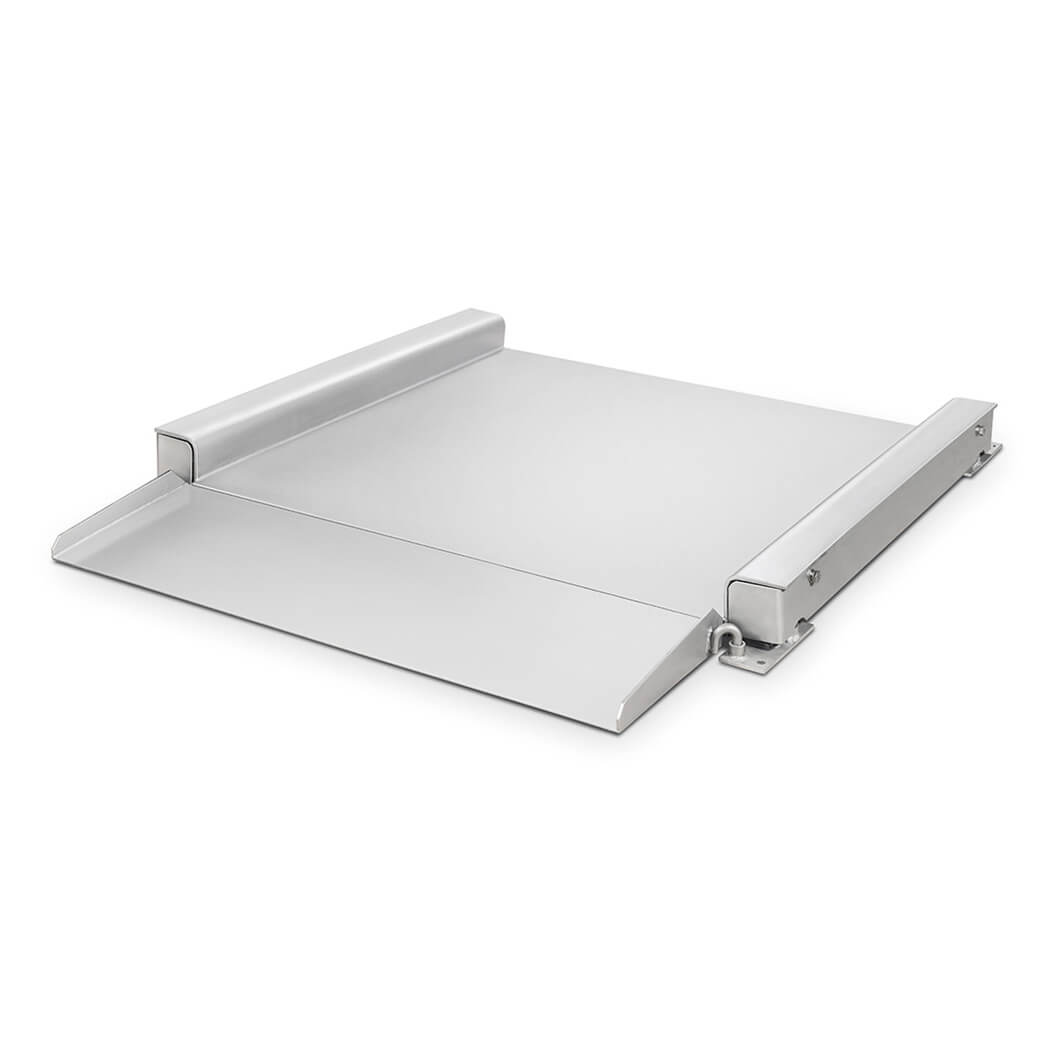

The Defender 5000 Series Stainless Steel Low Profile Platform combines durable construction and an ultra-low height. Featuring a stainless steel platform, built-in ramp, four IP68 stainless steel load cells (with adjustable feet), the ultra-low design simplifies the job of moving goods on and off the platform.
Defender® 5000 Washdown Low Profile Floor Platforms Features
Ultra-low profile solution for weighing drums and carts by loading and driving over the platform in wet applications. 35 mm height for the 600 kg model and 45 mm for the 1500 kg model.
Platforms are equipped with a 5 m double-shielded EasyConnect™ cable, which allows instant configuration with Defender 5000 (TD52) indicators for quick installation.
Stainless steel low-profile platform is available in 1000 x 1000 mm and 1250 x 1250 mm sizes and capacities from 600 to 1500 kg, allowing greater flexibility to best suit your weighing needs.
Defender® 5000 Washdown Low Profile Floor Platforms Models
Maximum Capacity
Show More
Readability
Show More
Readability (Certified)
Show More
Platform Size
Show More
Protection Rating
Show More
Legal for Trade
Show More
Maximum Capacity
600 kg
Readability
0.2 kg
Readability (Certified)
0.2 kg
Maximum Capacity
1,500 kg
Readability
0.5 kg
Readability (Certified)
0.5 kg
Defender® 5000 Washdown Low Profile Floor Platforms Product Details
Applications
N/A
Display
N/A
Operation
N/A
Communication
N/A
Construction

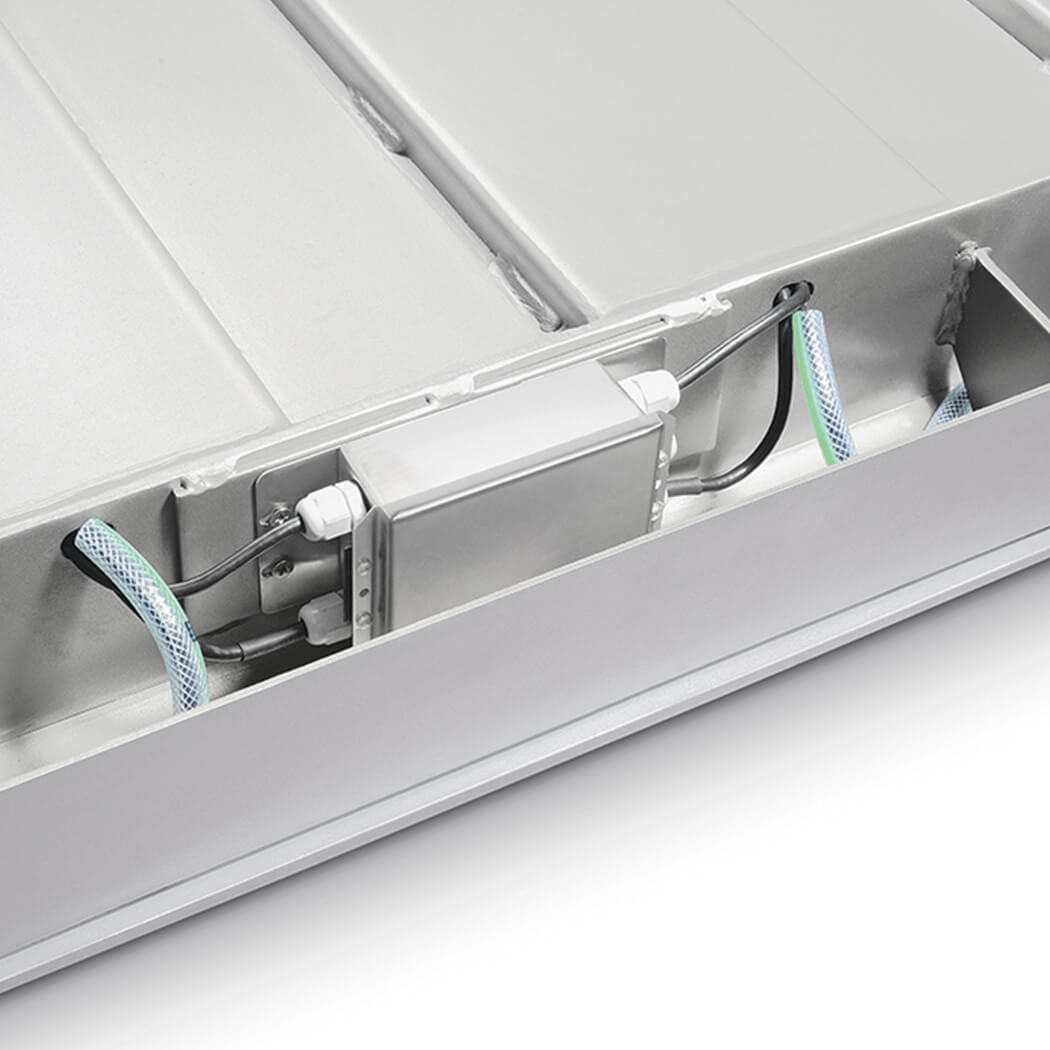

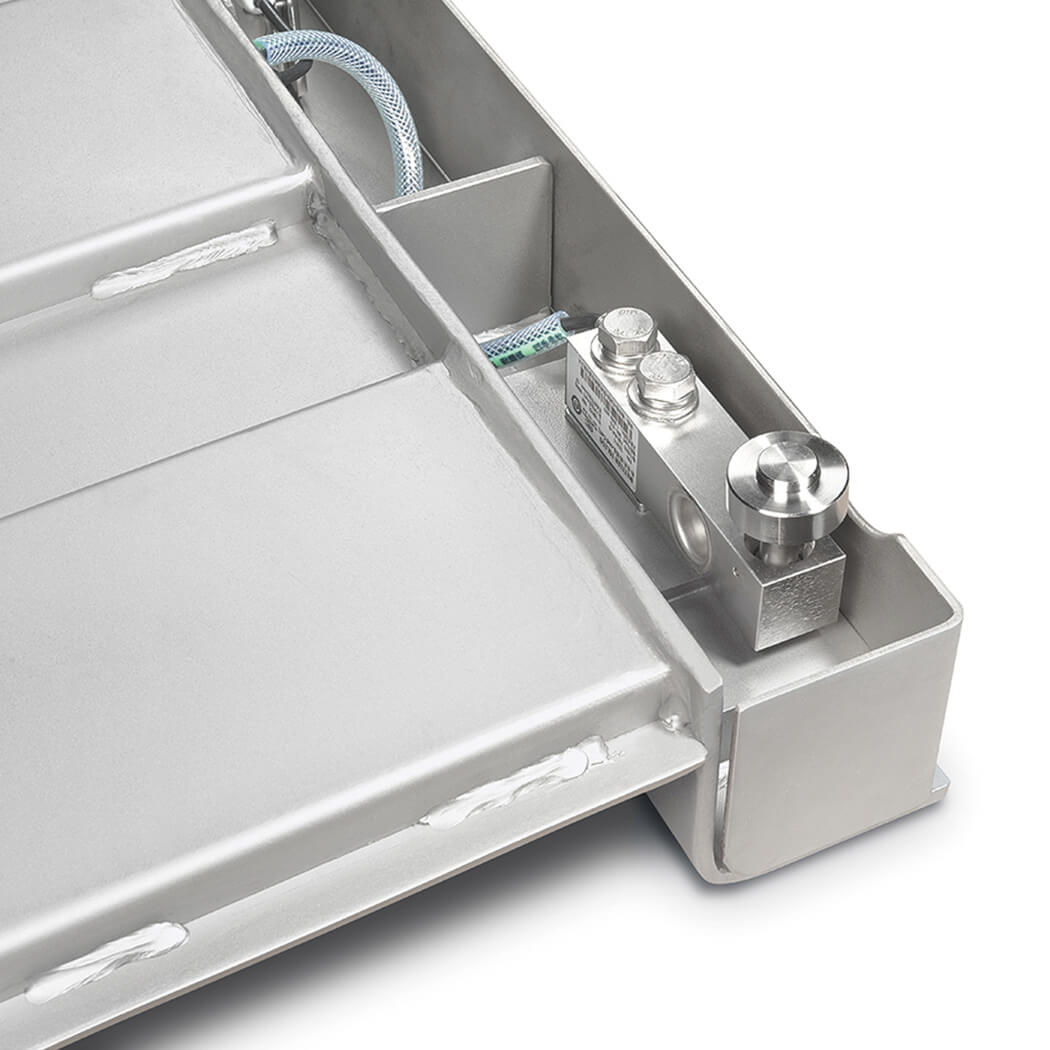

Stainless steel platform, IP67 stainless steel junction box, (4) OIML R60 IP68 stainless steel load cell and a front access stainless steel ramp
Design Features
150% capacity overload protection, painted and stainless steel floor stands (available as accessories)
