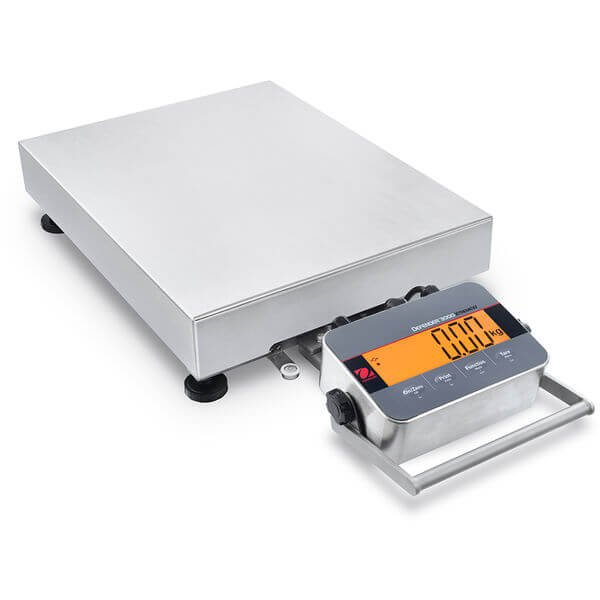

Defender™ 3000 Washdown - i-D33
Stainless Steel Bench Scales for Basic Industrial Washdown Applications

D33XW150C1L5EU-M

Maximum Capacity 150 kg
Readability 50 g
Readability (Certified) 50 g
Item Number: 30685145
Overview
The Defender 3000 Washdown Bench Scales are ideal for general weighing, simple counting and checkweighing applications in damp environments, or when washdown cleaning is required. The Defender 3000 Series features a simple, yet rugged, stainless steel design and IP66 stainless steel indicator with tactile keys, multicolor backlit LCD display, AC or standard rechargeable battery operation and flexible mounting capabilities.
Applications
Weighing, Checkweighing, Counting, Totalization.
Display
7 Segment LCD with multicolor backlight
Operation
AC Power (included) or Rechargeable Battery (included)
Communication
Standard RS232 and optional USB Device or Ethernet
Construction
304-grade stainless steel platform and frame, stainless steel IP66 indicator, IP67 load cell, non-slip adjustable rubber feet
Design Features
150% overload protection
Specifications
Maximum Capacity 150 kg
Readability 50 g
Readability (Certified) 50 g
Platform Size 550 mm x 420 mm
Legal for Trade EC Type Approved;OIML
Power Rechargeable Battery (Included);AC Adapter (Included)
Dimensions 842 mm x 134 mm x 420 mm (LxHxW)
Tare Range To capacity by subtraction
Working Environment -10°C – 40°C, 85%RH, non-condensing
Platform Construction Stainless Steel
Net Weight 18.1 kg
Second Scale Input Not Applicable
Protection Rating IP66
Communication Ethernet (Available as an Accessory);RS232 (Included);USB (Available as an Accessory)
Units of Measurement Kilogram;Gram
Display 7 Segment LCD with multicolor backlight
Battery Life 100 Hours with Rechargeable Battery
Outputs Not Applicable
Accessories

Item Number

80500552

Description

Cable RS232 XW Indicators

Item Number

30064202

Description

Printer, Impact, SF40A, EU

Item Number

30699121

Description

Dust Cover Set(5) i-DT33

Item Number

30429666

Description

Ethernet kit Defender Series

Item Number

30699120

Description

USB Device Interface Kit i-DT33

Item Number

30616409

Description

Wheel Kit SST Defender Series

Item Number

30372146

Description

Wheel Kit, Defender Series
