DF33P1500B1X-M

Maximum Capacity	1,500 kg
Readability	0.5 kg
Readability (Certified)	0.5 kg
Item Number:	30764263

Request a Quote ADD TO QUOTE LIST

View All Defender™ 3000 Floor Scales - i-DF33 Models

Overview
Specs
Accessories
Documents

Overview

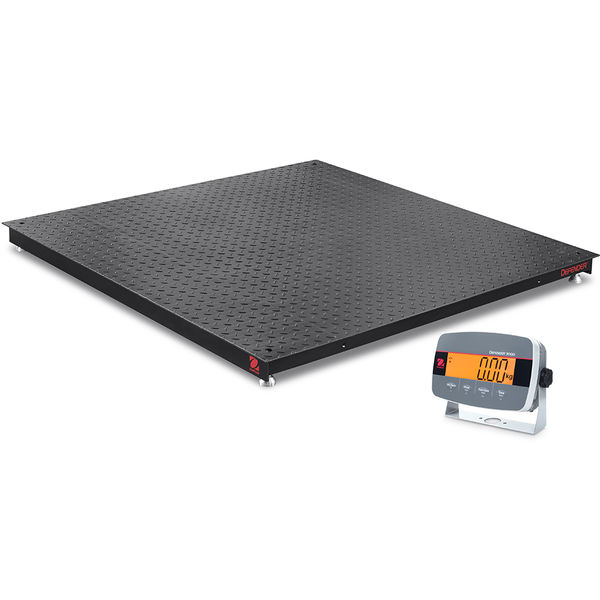

Defender 3000 Series Floor Scales are the value solution for dry weighing needs in industrial and commercial applications. Their high-quality material and construction are designed to minimize distortion under heavy loads and ensure years of dependable performance. Available with corresponding ramps and mounting accessories, Defender 3000 floor scales offer a unique combination of value, quality, and dependability that you can rely on.

Applications

Weighing, Checkweighing, Counting, Totalization

Display

7 Segment LCD with multicolor backlight

Operation

Internal power supply with power cord (included), 6C (LR14) Batteries (not included) or Rechargeable Battery

Communication

Standard RS232 and optional USB Device or Ethernet

Construction

ABS plastic indicator, 5 mm fixed top plate, black treaded painted steel platform, IP65 stainless steel junction box with side access, 4 x IP67 OIML R60 alloy steel load cells, two carbon steel eye bolts, available painted steel ramp

Design Features

125% overload protection, four load cell-mounted feet with self-swiveling ball-in-cup design, painted and stainless steel floor stands (available as accessories)

Specifications

Maximum Capacity	1,500 kg
Readability	0.5 kg
Readability (Certified)	0.5 kg
Platform Size	1,500 mm x 1,500 mm
Battery Life	30 Hours with Rechargeable Battery;100 Hours with Disposable Batteries
Communication	Ethernet (Available as an Accessory);RS232 (Included);USB (Available as an Accessory)
Dimensions	1,500 mm x 90 mm x 1,500 mm (LxHxW)
Display	7 Segment LCD with multicolor backlight
Legal for Trade	EC Type Approved;OIML
Net Weight	183.4 kg
Outputs	Not Applicable
Platform Construction	Painted Steel Diamond Plate
Power	6 C (LR14) Batteries (Not Included);Rechargeable Battery (Not Included);AC Power (Included)
Protection Rating	Not Applicable
Tare Range	To capacity by subtraction
Units of Measurement	Metric Tons;Gram;Kilogram
Working Environment	-10°C – 40°C, 85%RH, non-condensing
