DFD600HR

Maximum Capacity	600 kg
Readability	0.2 kg
Readability (Certified)	0.2 kg
Item Number:	30540661

Request a Quote ADD TO QUOTE LIST

View All Defender™ 5000 Low Profile Floor Platforms Models

Overview
Specs
Accessories
Documents

Overview

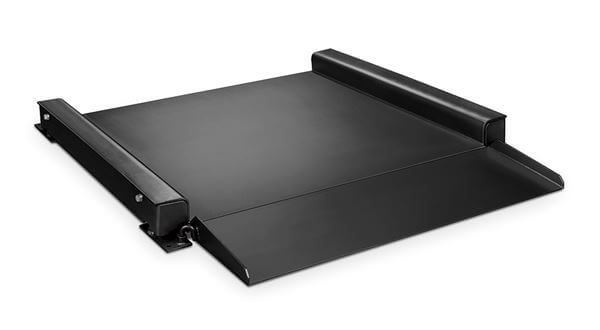

Defender 5000 Series Low Profile Platform combines durable construction and an ultra-low height. Featuring a painted steel platform, built-in ramp, four alloy steel load cells (with adjustable feet), the ultra-low design simplifies the job of moving goods on and off the platform.

Applications

N/A

Display

N/A

Operation

N/A

Communication

N/A

Construction

Painted steel platform, stainless steel junction box, (4) OIML R60 alloy steel load cells and a front access painted ramp

Design Features

150% capacity overload protection, painted and stainless steel floor stands (available as accessories)

Specifications

Maximum Capacity	600 kg
Readability	0.2 kg
Readability (Certified)	0.2 kg
Platform Size	1,000 mm x 1,000 mm
Protection Rating	IP65
Legal for Trade	EC Type Approvable
Dimensions	1,300 mm x 114 mm x 1,186 mm (LxHxW)
Net Weight	136 kg
Platform Construction	Painted Steel
Working Environment	-10°C – 40°C, 85%RH, non-condensing
