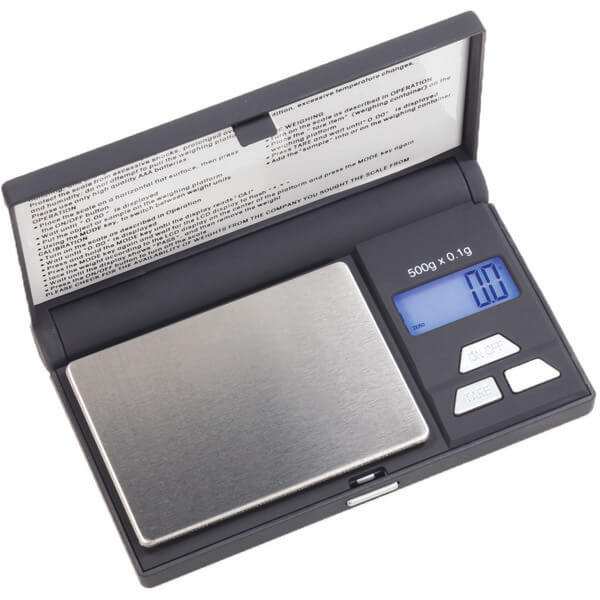

YA Gold Series
Portable Precision Weighing in a Compact Case

YA501

Maximum Capacity 500 g
Readability 0.1 g
Pan Size 2.8 in x 2 in (70 mm x 50 mm)
Item Number: 80251912
Request a Quote ADD TO QUOTE LIST
View All YA Gold Series Models
Overview
The unique YA Series' weighing pan is integrated right into its carrying case, offering the ultimate combination of portability and protection. Just flip the case open and begin weighing.
Applications
Weighing
Display
Backlit liquid crystal display (LCD)
Operation
2 AAA batteries (included)
Communication
N/A
Construction
ABS housing, stainless steel pan, protective cover
Design Features
Mechanical and software overload/underload protection, auto shut-off
Specifications
Maximum Capacity 500 g
Readability 0.1 g
Pan Size 2.8 in x 2 in (70 mm x 50 mm)
Communication Not applicable
Auxiliary Display Model Not Applicable
Dimensions 2.9 in x 0.8 in x 4.3 in (75 mm x 20 mm x 110 mm) (LxHxW)
Display LCD with backlight
Internal Calibration Not Applicable
In-Use Cover No
Legal for Trade Not Applicable
Linearity ± 0.3 g
Net Weight 0.15 kg
Pan Construction Stainless Steel
Power 2 AAA (LR03) Batteries (Included)
Repeatability, typical 0.1 g
Tare Range To capacity by subtraction
Transportation Case No
Units of Measurement Grain;Gram;Carat;Ounce
Working Environment 50°F – 86°F, 80%RH, non-condensing (10°C – 30°C, 80%RH, non-condensing)
Accessories

Item Number

12102647

Description

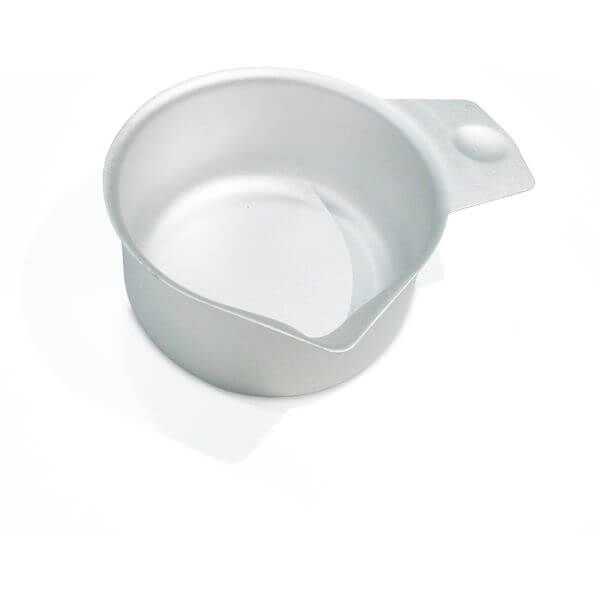

Carat Bowl large aluminium

Request a Quote Add To Quote List Remove From Quote List

Item Number

12102646

Description

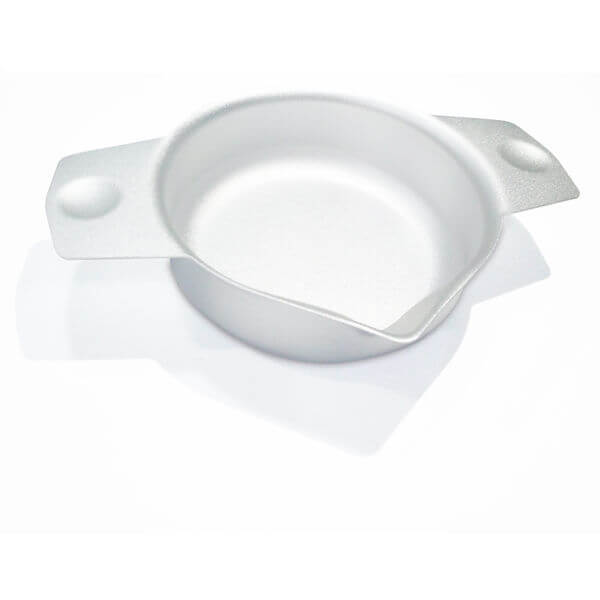

Carat Bowl medium aluminium

Request a Quote Add To Quote List Remove From Quote List

Item Number

12102645

Description

Carat Bowl small aluminium

Request a Quote Add To Quote List Remove From Quote List
