Bench Scales

Ranger™ 7000

Top-of-the-Line Compact Scales for Even the Most Complex Industrial Applications
For Ranger 7000, there is one resounding theme: it offers the best of every ingenious feature that make OHAUS industrial products the right tools for your toughest weighing jobs. Ranger 7000 boasts the highest resolution, largest display, most application modes and connectivity options, as well as the largest memory library of any industrial bench scale in the OHAUS portfolio.
Ranger™ 7000 Features

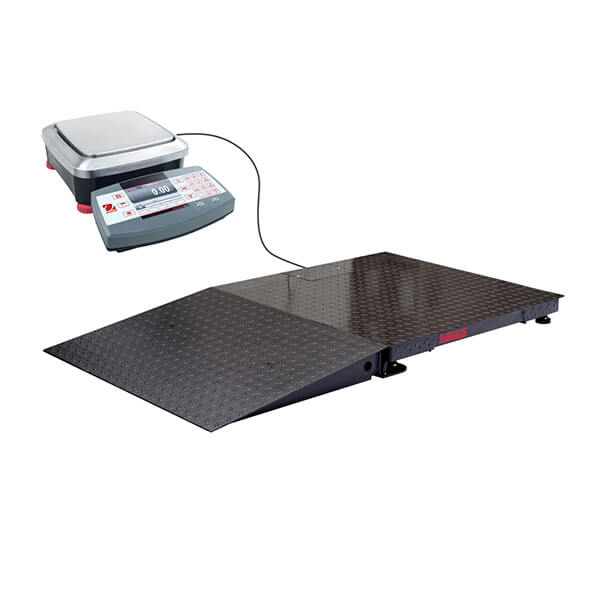

Simplify complex applications and minimize the need for manual calculations with 10 advanced application modes, peripheral device control and an optional kit for a second scale platform.
The most precise scale in its class with one-second stabilization time, up to 75,000d or 350,000d display resolution and legal-for-trade certifications.
Extremely durable scale designed to thrive in rugged industrial environments. Features IP54-rated metal housing and sealed metal terminal.
Ranger™ 7000 Models
Maximum Capacity




Show More
Readability









Show More
Readability (Certified)






Show More
Platform Size



Show More
Battery Life

Show More
Second Scale Input
Show More
Maximum Capacity
6 lb (3 kg)
Readability
0.00002 lb (0.01 g)
Readability (Certified)
0.0002 lb (0.1 g)
Maximum Capacity
6 lb (3 kg)
Readability
0.0002 lb (0.1 g)
Readability (Certified)
0.0002 lb (0.1 g)
Maximum Capacity
6 lb (3 kg)
Readability
0.0001 lb (0.05 g)
Readability (Certified)
0.001 lb (0.5 g)
Maximum Capacity
6 lb (3 kg)
Readability
0.001 lb (0.5 g)
Readability (Certified)
0.001 lb (0.5 g)
Maximum Capacity
15 lb (6 kg)
Readability
0.00005 lb (0.02 g)
Readability (Certified)
0.0005 lb (0.2 g)
Maximum Capacity
15 lb (6 kg)
Readability
0.0005 lb (0.2 g)
Readability (Certified)
0.0005 lb (0.2 g)
Maximum Capacity
15 lb (6 kg)
Readability
0.0002 lb (0.1 g)
Maximum Capacity
15 lb (6 kg)
Readability
0.002 lb (1 g)
Readability (Certified)
0.002 lb (1 g)
Maximum Capacity
30 lb (15 kg)
Readability
0.0002 lb (0.1 g)
Readability (Certified)
0.002 lb (1 g)
Maximum Capacity
30 lb (15 kg)
Readability
0.002 lb (1 g)
Readability (Certified)
0.002 lb (1 g)
Maximum Capacity
30 lb (15 kg)
Readability
0.0005 lb (0.2 g)
Readability (Certified)
0.005 lb (2 g)
Maximum Capacity
30 lb (15 kg)
Readability
0.005 lb (2 g)
Readability (Certified)
0.005 lb (2 g)
Maximum Capacity
70 lb (35 kg)
Readability
0.0002 lb (0.1 g)
Readability (Certified)
0.002 lb (1 g)
Maximum Capacity
70 lb (35 kg)
Readability
0.002 lb (1 g)
Readability (Certified)
0.002 lb (1 g)
Maximum Capacity
70 lb (35 kg)
Readability
0.001 lb (0.5 g)
Readability (Certified)
0.01 lb (5 g)
Maximum Capacity
70 lb (35 kg)
Readability
0.01 lb (5 g)
Readability (Certified)
0.01 lb (5 g)
Maximum Capacity
150 lb (60 kg)
Readability
0.002 lb (1 g)
Readability (Certified)
0.02 lb (10 g)
Maximum Capacity
150 lb (60 kg)
Readability
0.02 lb (10 g)
Readability (Certified)
0.02 lb (10 g)
Ranger™ 7000 Product Details
Applications
Weighing, Parts Counting with Auto Optimization, Percent Weighing, Advanced Checkweighing, Animal/Dynamic Weighing, Display Hold, Filling, Formulation, Differential Weighing, Density Determination, Sieve Analysis

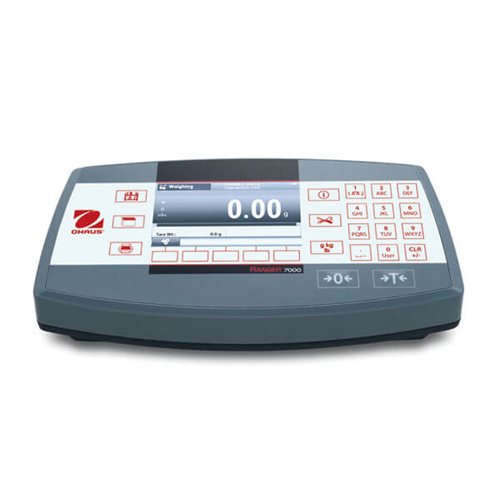

Display
4.3" (109 mm) Full-color WQVGA graphic display with user-controlled brightness
Operation
AC power (included) or rechargeable battery (accessory sold separately)
Communication
Easy access communication port including standard USB and RS232 (included) and an optional third port of RS232 or Ethernet (accessories sold separately). GLP/GMP Data Output with Real Time Clock. Data Transfer Function.
Construction

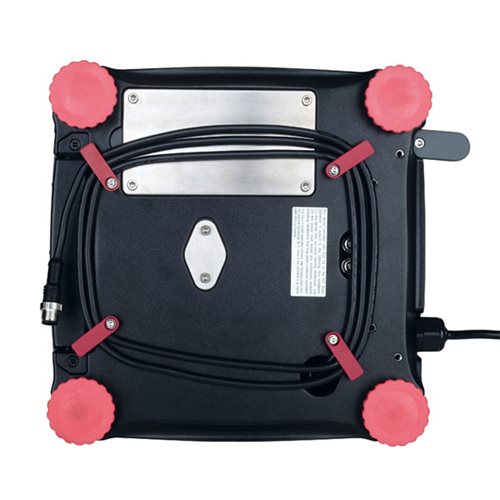

Modular design, die-cast housing, removable stainless steel platform, integral weigh below hook, menu lock switch, level indicator
Design Features
Checkweighing lights with selectable operation and audible signal settings, several selectable operating languages, selectable environmental and autoprint settings, stability indicator, overload/underload indicators, selectable brightness settings, auto-dim, auto-sleep, auto tare, chain tare
